Overview
The hand brake actuator in the BMW X5 E70 is an essential component of the vehicle’s electronic parking brake system (EPB). Unlike traditional mechanical hand brakes, the E70 employs an electronically controlled mechanism to engage and disengage the parking brake. The actuator is the core part responsible for converting electronic signals into mechanical force to lock or release the rear brakes.
Function and Operation
The actuator works by receiving input from the EPB switch located on the center console. When the driver engages or disengages the hand brake, the actuator’s electric motor and gear system apply or release tension on the parking brake cables connected to the rear brake calipers. This ensures the vehicle remains stationary when parked, especially on slopes.
This system also integrates with various safety systems such as hill start assist and auto-hold, improving the overall driving experience and safety.

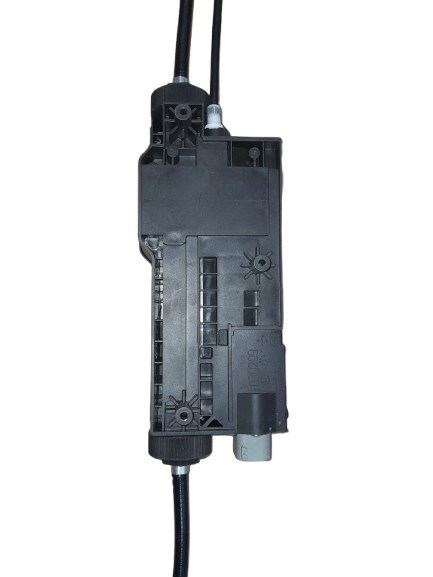

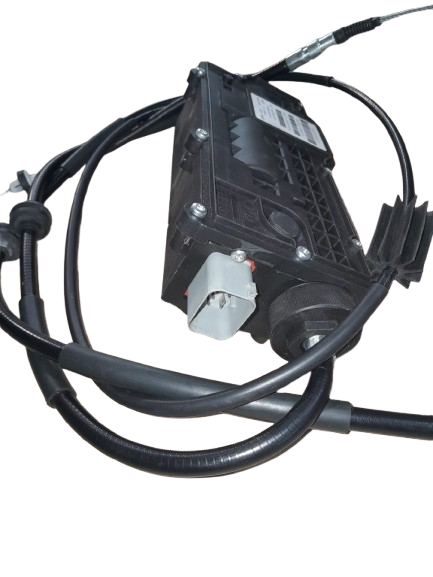

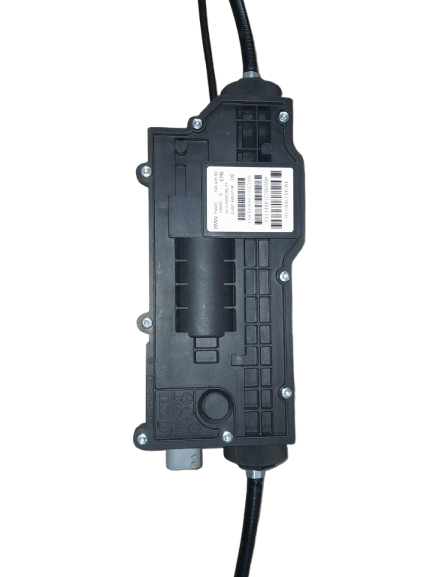

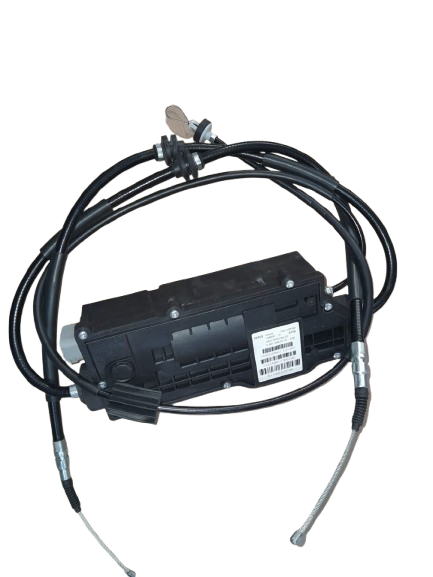

Location and Design
The actuator is located beneath the vehicle, typically mounted near the rear differential or rear subframe, and it connects via cables to both rear brake calipers. It is housed in a sealed, weather-resistant casing, designed to withstand harsh environmental conditions such as water, dirt, and road debris.
Inside, it contains:
- An electric motor
- A reduction gear mechanism
- A control module (sometimes integrated)
- Cable tensioners
Common Issues
The hand brake actuator on the BMW X5 E70 is known to develop issues over time, particularly due to motor failure, gear wear, or cable corrosion. Symptoms of failure include:
- Hand brake not engaging or releasing
- Error messages on the iDrive system
- Clicking or grinding noises during operation
- Parking brake warning light staying on
Maintenance and Replacement
BMW does not typically recommend repairing the actuator itself, as it is a sealed unit. However, replacement is straightforward for experienced technicians. It is important to diagnose the actuator properly, as issues can also stem from faulty brake cables or control modules.
Using OEM or quality aftermarket parts ensures the longevity of the new actuator and prevents premature failure.
Conclusion
The BMW X5 E70 hand brake actuator is a critical yet often overlooked component. It provides the convenience and safety of an electronic parking brake system but requires regular attention and prompt replacement upon failure to ensure safe operation of the vehicle.
