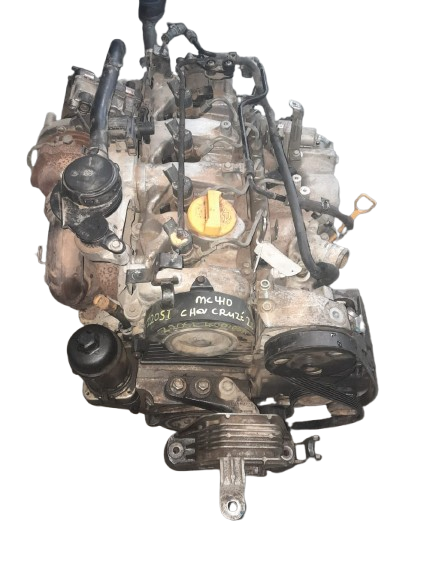

Overview of the Chevrolet Captiva 2.0L (Z20S1) Diesel Engine
The Chevrolet Captiva 2.0L Z20S1 engine is a robust and efficient four-cylinder common-rail turbo-diesel engine designed to deliver a balance of power, fuel economy, and durability. Developed through a collaboration between GM Daewoo and VM Motori, the engine was primarily used in the Chevrolet Captiva, Opel Antara, and other GM SUVs in the late 2000s. With a displacement of 1991cc, the Z20S1 engine produces around 150 hp and 320 Nm of torque, making it suitable for both urban commuting and off-road or towing applications.
Cylinder Head
The cylinder head of the Z20S1 engine is made from aluminum alloy, which offers lightweight construction and effective heat dissipation. It features 16 valves (4 per cylinder) and a DOHC (Double Overhead Camshaft) configuration, improving air intake and exhaust flow. This design helps optimize combustion efficiency and emissions control.
The Z20S1 engine is also equipped with common-rail direct injection, where high-pressure injectors deliver finely atomized fuel directly into the combustion chamber. This results in better fuel efficiency and lower emissions. Additionally, the engine incorporates an intercooler and a variable geometry turbocharger (VGT), improving torque delivery across a wide RPM range.
Engine Block
The engine block is constructed from cast iron, providing the strength and rigidity needed to handle the high compression ratios typical of diesel engines. It houses four inline cylinders with a bore and stroke of approximately 83 mm x 92 mm, delivering a torquey and smooth performance.
Inside the block, you’ll find forged steel connecting rods, aluminum pistons, and a balanced crankshaft. The block also features internal oil and coolant galleries that help maintain optimal operating temperatures and efficient lubrication under various load conditions.
Oil Sump
The oil sump is mounted at the base of the engine and serves as the engine oil reservoir. Constructed from either stamped steel or cast aluminum, it includes baffles to prevent oil from sloshing during cornering or braking, ensuring consistent oil pickup.
The sump contains the oil pickup tube, which feeds oil to the pump and throughout the engine’s lubrication system. A drain plug allows for routine maintenance, and in some models, the sump may house an oil level or temperature sensor for added monitoring.
Conclusion
The Chevrolet Captiva 2.0L Z20S1 diesel engine is a well-engineered powerplant designed for durability and performance. Its aluminum head, strong iron block, and practical oil sump layout contribute to its longevity and capability. When properly maintained, the Z20S1 engine provides a reliable driving experience with strong torque, making it ideal for heavier SUV applications like the Captiva.
