Overview of the Chevrolet Cruze 1.8 (F18D4) Engine
The Chevrolet Cruze 1.8L F18D4 engine is a naturally aspirated inline-four petrol engine that delivers a strong balance between performance, fuel efficiency, and reliability. This engine belongs to the GM Family 1 series, originally developed by Opel and later improved by GM Daewoo for various international models. It produces approximately 140 horsepower and is widely used in compact sedans and hatchbacks. The engine’s core structure is divided into three critical components: the cylinder head, the engine block, and the oil sump. Together, these parts ensure smooth combustion, cooling, and lubrication.

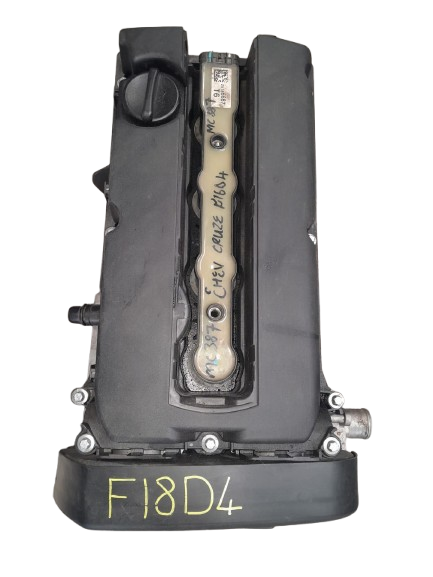

Cylinder Head
The cylinder head of the F18D4 engine is made from aluminum alloy, which provides excellent thermal conductivity and helps reduce overall engine weight. The head features double overhead camshafts (DOHC) and 16 valves—four per cylinder—for optimal airflow and combustion efficiency.
The DOHC configuration allows for better control of valve timing, leading to improved performance and fuel economy. The valve train includes hydraulic lifters, reducing the need for regular valve clearance adjustment. Additionally, the head integrates variable valve timing (VVT) on the intake side, enhancing engine responsiveness across various RPM ranges. The spark plugs, fuel injectors, and intake/exhaust ports are also located within the head.
Engine Block
The F18D4 engine block is built from cast iron, providing the necessary strength to endure high temperatures and internal pressures. It houses four inline cylinders with a bore and stroke of approximately 80.5 mm x 88.2 mm, giving the engine its 1.8-liter displacement.
Inside the block, you’ll find aluminum pistons, forged steel connecting rods, and a cast crankshaft supported by main bearings. The engine uses an oil-cooled piston design to enhance durability, and coolant jackets surround the cylinders to maintain optimal operating temperatures.
Oil Sump
The oil sump, typically made of pressed steel or aluminum, is located at the bottom of the engine and functions as the main oil reservoir. It collects oil after it has circulated through the engine, ensuring a constant supply for the oil pump.
The sump design includes baffles to prevent oil sloshing during vehicle movement, helping avoid oil starvation. An oil drain plug provides easy access for oil changes, and some versions include a sensor for oil level monitoring. The oil pickup tube inside the sump ensures oil is efficiently drawn and delivered to the entire lubrication system.
Conclusion
The Chevrolet Cruze 1.8 F18D4 engine combines a lightweight aluminum cylinder head, a robust cast-iron block, and a practical oil sump design for durability and reliable daily use. Its solid construction and proven technology make it a dependable choice for long-term ownership with proper maintenance.
