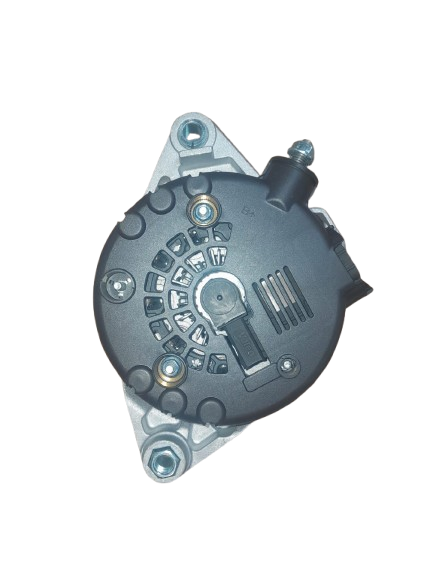

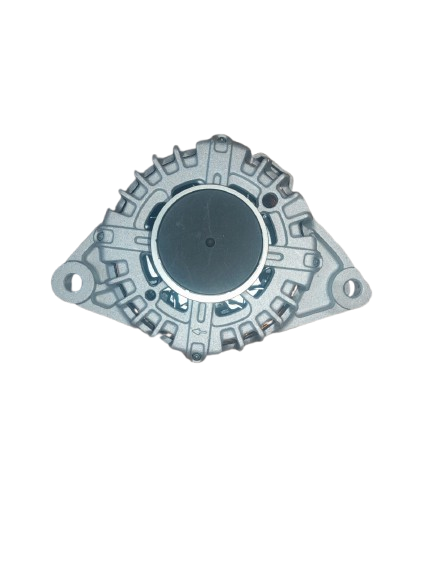

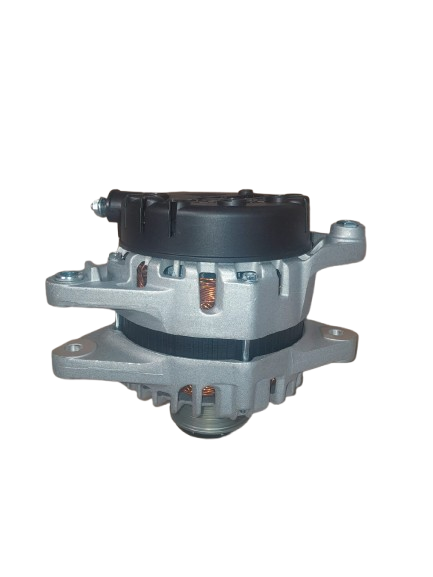

Overview of the Hyundai H1 D4CB Alternator
The Hyundai H1 D4CB alternator is a vital component of the electrical system in the Hyundai H1 van equipped with the D4CB engine, a 2.5-liter CRDi (Common Rail Direct Injection) turbo diesel engine. The alternator is responsible for generating electrical power and maintaining the battery charge, ensuring that all electronic systems operate efficiently whether the engine is idling or in motion.
Function and Importance
The alternator serves a dual role:
- Power Generation: It converts mechanical energy from the engine (via the serpentine belt) into electrical energy.
- Battery Charging: It replenishes the battery while the vehicle is running, preventing battery drain and ensuring reliable starting performance.
Without a functioning alternator, the vehicle would rely solely on the battery, which would quickly discharge, leading to engine stalling and a complete loss of electrical functions.
Design and Technical Specifications
The Hyundai H1 D4CB alternator typically features:
- Output Voltage: 12V
- Amperage Rating: Between 90A and 150A, depending on the model year and trim level.
- Pulley Type: Clutch or solid pulley (varies by generation)
- Cooling System: Internal fan cooling or external fan design
- Mounting Style: Direct bolt-on specific to the D4CB engine layout
The alternator is driven by a serpentine belt connected to the engine’s crankshaft pulley. It includes a voltage regulator, which ensures the output voltage remains stable and safe for the vehicle’s electrical components.
Common Issues and Maintenance
Some typical issues that may occur with the H1 alternator include:
- Worn-out bearings leading to noise or alternator seizure.
- Voltage regulator failure, causing overcharging or undercharging.
- Diode failure, leading to battery drain when the vehicle is off.
Routine inspection of the belt tension, electrical connections, and alternator output using a multimeter can prevent unexpected failures.
Replacement and Compatibility
When replacing the Hyundai H1 D4CB alternator, it’s crucial to ensure compatibility with the vehicle’s year, model, and engine variant. OEM (Original Equipment Manufacturer) parts are recommended for best performance, although several high-quality aftermarket alternatives exist.
Conclusion
The alternator in the Hyundai H1 with the D4CB engine is a robust and essential component, critical to the operation of the vehicle’s electrical and charging systems. Timely maintenance and quality replacement can ensure long-term reliability and performance.
