Overview

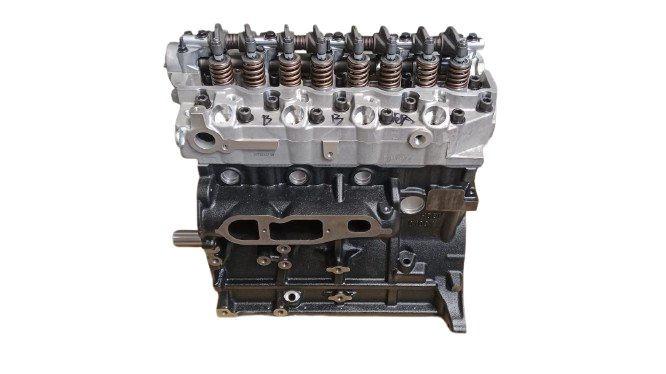

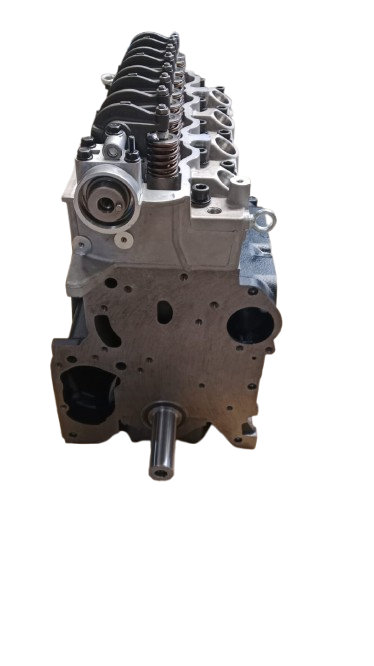

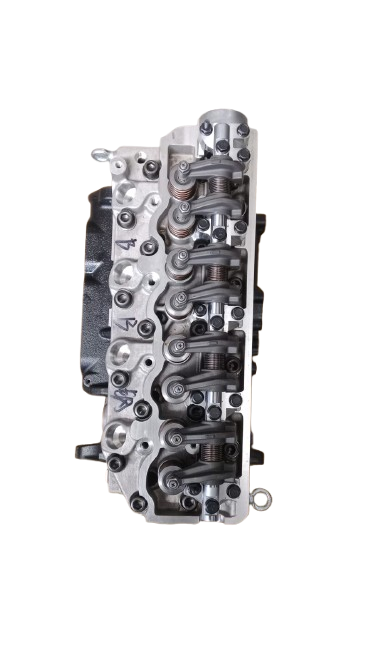

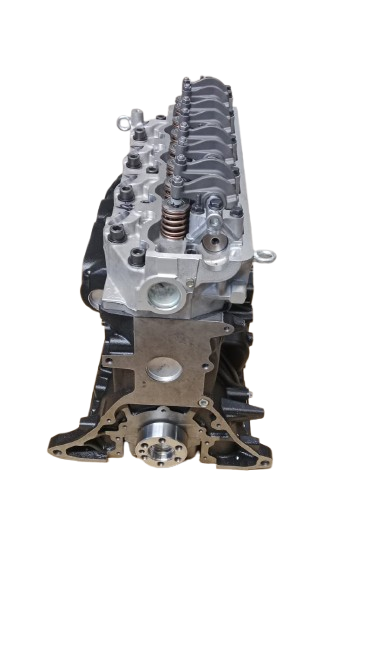

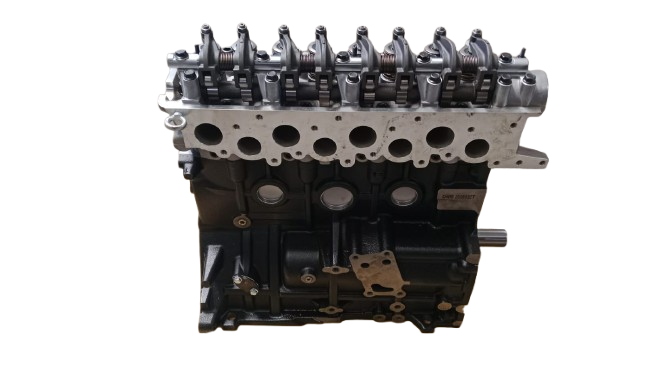

The Hyundai D4BB is a 2.6-litre (2,607 cc) naturally aspirated four-cylinder diesel engine, widely used in the Hyundai H100 (also known in some markets as the Porter or Grace). Built for utility and durability, this engine is known for its simplicity, reliability, and ability to perform under demanding conditions.
The engine features an inline-4 configuration with a bore and stroke of approximately 91.1 mm × 100 mm, which results in a long-stroke design optimal for producing torque at low RPMs. It operates with a single overhead camshaft (SOHC) and a total of 8 valves (2 per cylinder). The compression ratio is quite high, around 21:1 to 22:1, which is typical of naturally aspirated diesel engines designed for pulling power.
Fuel delivery is handled by a mechanical fuel injection system, eliminating the need for high-pressure common-rail or electronic injectors. This not only simplifies maintenance but also allows the engine to tolerate lower fuel quality. Cooling is provided by a water-cooled system, and the engine block is typically constructed from cast iron to enhance durability.
The D4BB produces between 78 and 85 horsepower at around 4,000 RPM and develops about 162–172 Nm of torque at approximately 2,200 RPM. While not a high-performance engine, its powerband is well-suited for the Hyundai H100’s role in hauling and light commercial work.
Performance & Behaviour
The D4BB engine delivers dependable performance in environments where rugged reliability is more important than speed or refinement. Its design provides strong low-end torque, which is especially beneficial for transporting heavy loads in urban or short-distance settings. The mechanical injection system ensures consistent fuel delivery even in areas where diesel quality is subpar.
While the engine lacks turbocharging, which limits its power and efficiency compared to modern diesels, it compensates with consistent torque, ease of service, and fewer failure points. This makes it ideal for fleet operations and commercial users seeking dependable and low-maintenance performance.
Applications & Suitability
This engine powers many variants of the Hyundai H100, including delivery vans, flatbeds, and crew cabs used across Asia, Africa, and other emerging markets. Its design is well-suited for:
- Light commercial transport
- Urban logistics and delivery work
- Conditions where ease of maintenance and engine simplicity are key
- Rural and industrial environments with less advanced servicing facilities
The D4BB’s reputation as a workhorse engine makes it a favorite for commercial vehicle owners prioritizing reliability, cost-efficiency, and utility.
Conclusion
The Hyundai D4BB 2.6L diesel engine is a proven and practical solution for light commercial vehicles like the Hyundai H100. With its mechanical simplicity, strong low-end torque, and durable construction, it continues to serve reliably in roles that require frequent hauling, loading, and short-distance driving. While it may not match the refinement or efficiency of modern turbocharged or common-rail engines, the D4BB remains a solid performer where it matters most: durability, maintenance ease, and consistent performance under load.
