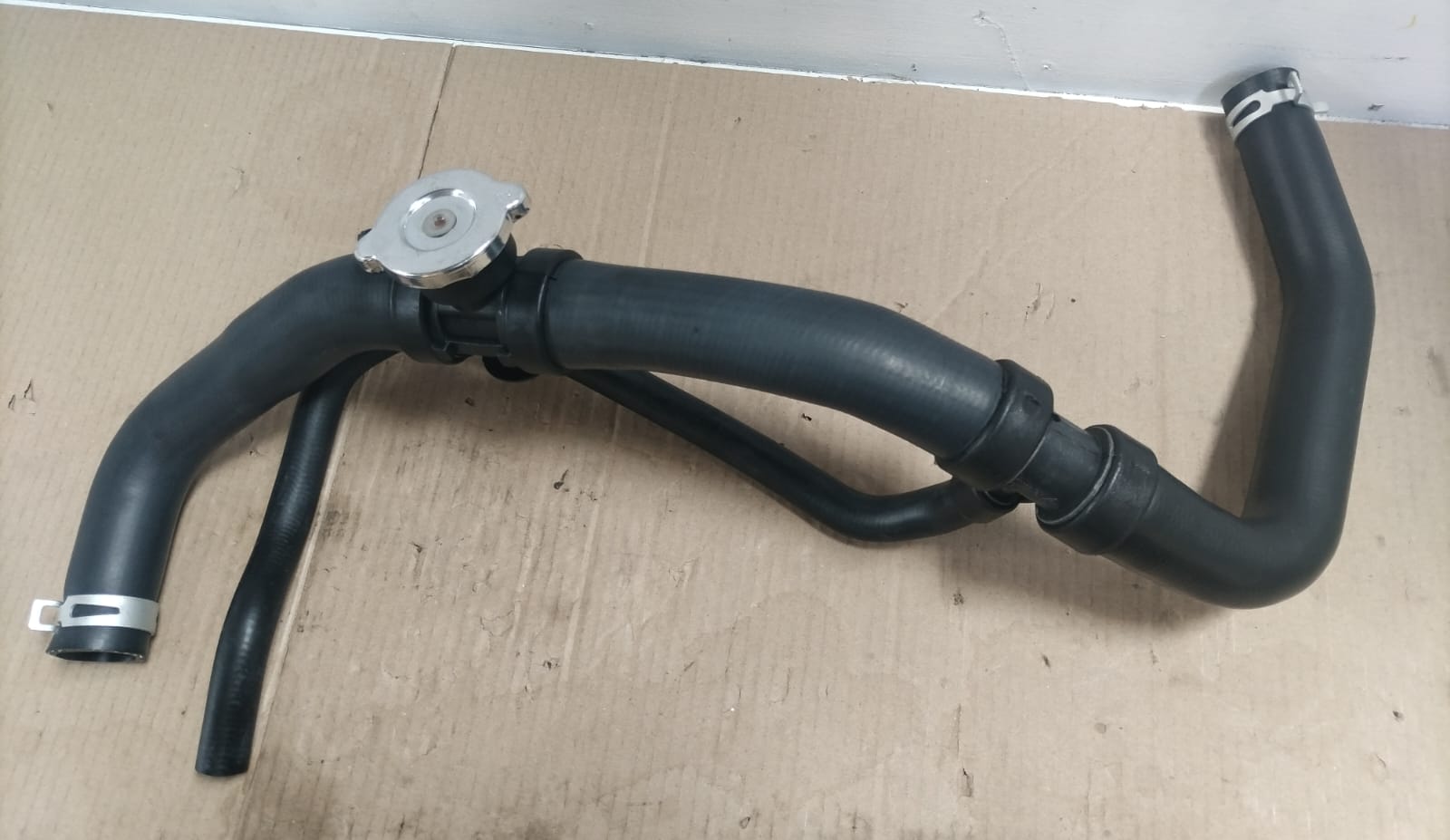

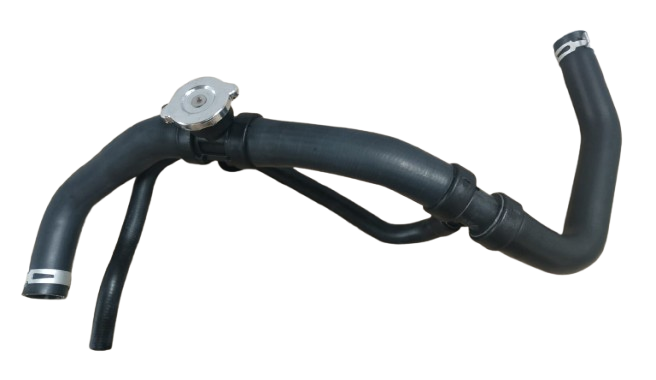

Overview of the Radiator Pipe for 2.4L Engine Models
The radiator pipe in the Jeep Compass, Jeep Patriot, and Dodge Caliber equipped with the 2.4L World Engine (ED3/ED4) plays a crucial role in the vehicle’s cooling system. Also known as the coolant pipe or radiator hose pipe, this component ensures the effective flow of coolant between the engine, radiator, and thermostat housing, regulating engine temperature during operation.
This 2.4L engine is used across various Chrysler-Jeep-Dodge vehicles, and the cooling system layout is largely shared among them. The radiator pipe is vital for maintaining engine thermal stability, preventing overheating, and ensuring optimal performance.
Function and Flow Path
The radiator pipe is typically a metal or plastic coolant pipe that serves as a channel for the coolant to flow from the thermostat housing or water pump to the radiator inlet. It works in tandem with upper and lower radiator hoses and sometimes integrates sensors or mounts for additional cooling components.
The coolant enters the engine, absorbs heat, and exits through the radiator pipe to be cooled in the radiator. Once the coolant is cooled down, it returns to the engine via the lower hose. Any failure in this pipe can lead to coolant leaks and engine overheating.
Material and Construction
Depending on the model year and trim, the radiator pipe may be made from:
- Aluminum or steel (for durability and heat resistance)
- High-grade plastic or composite (for weight reduction and corrosion resistance)
It may include mounting brackets, O-ring seals, and flange connectors to ensure a leak-free and vibration-resistant installation.
Common Issues and Symptoms
Typical issues with the radiator pipe include:
- Coolant leaks near connection points
- Cracks or corrosion in metal/plastic pipes
- Overheating engine
- Coolant smell or visible puddles under the vehicle
Replacing a faulty pipe is essential to avoid engine damage and ensure proper temperature regulation.
Compatibility and Fitment
The radiator pipe is specifically designed for vehicles with the 2.4L DOHC engine, including:
- Jeep Compass (2007–2017)
- Jeep Patriot (2007–2017)
- Dodge Caliber (2007–2012)
Always verify fitment by checking the OEM part number, engine type, and production year before purchase or replacement.
Conclusion
The radiator pipe in 2.4L Jeep and Dodge models is a critical part of the cooling system, designed to withstand engine heat and pressure. Regular inspection and timely replacement ensure efficient engine cooling, preventing costly repairs and breakdowns.
