Overview
The rear differential V-arm, also known as the A-arm or triangulated upper control arm, is a critical suspension component found on the 1999–2004 Jeep Grand Cherokee WJ models. This arm plays a vital role in maintaining rear axle alignment, articulation, and stability during both on-road and off-road driving. It is unique to the WJ’s rear suspension setup, which is known for its combination of comfort, flexibility, and durability.
Design and Function
The WJ’s rear suspension features a five-link coil-spring setup, but instead of two upper control arms, it uses a single V-shaped arm mounted centrally to the top of the differential. This V-arm connects the axle housing to a frame-mounted ball joint located just above the rear differential, creating a triangulated geometry that provides lateral and longitudinal stability.
The design reduces axle wrap, enhances traction, and improves ride quality by allowing greater articulation without compromising control. This makes the WJ particularly capable in off-road environments while still providing a smooth highway ride.
Key Components
- V-Arm (A-Arm):

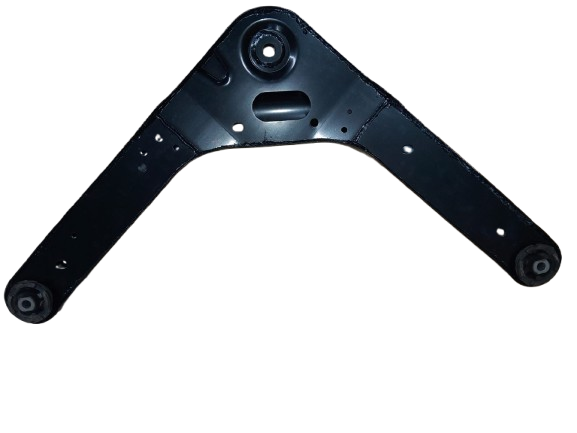

Made of heavy-duty stamped or boxed steel, designed to withstand significant stress. The arm has two rear bushings that connect to the axle and a central front bushing or ball joint that mounts to the frame crossmember. - Bushings:
Rubber or polyurethane bushings are used at all mounting points to absorb road shocks and vibrations. Over time, these wear out and may cause clunking noises or imprecise handling. - Ball Joint (Frame Mount):
Located at the apex of the V-arm, this joint allows for pivotal movement of the arm. If worn, it can cause excessive play or noise from the rear suspension.
Common Issues and Maintenance
As the vehicle ages, the bushings and ball joint in the V-arm often wear out, leading to clunking sounds, poor rear-end tracking, or even rear axle misalignment. Replacing the bushings or the entire arm is a common repair for higher-mileage WJs. Aftermarket and OEM replacements are widely available, and some enthusiasts opt for upgraded heavy-duty versions for better off-road performance.
Conclusion
The Jeep Grand Cherokee WJ’s rear differential V-arm is a uniquely engineered part of the rear suspension, combining strength and flexibility. Its triangulated design is both compact and effective, contributing to the vehicle’s legendary off-road capabilities. Regular inspection and timely replacement of bushings or the entire arm can significantly improve the vehicle’s ride quality, handling, and longevity.
