Overview

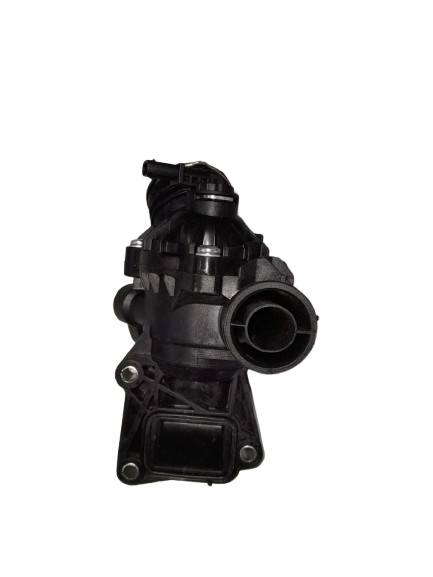

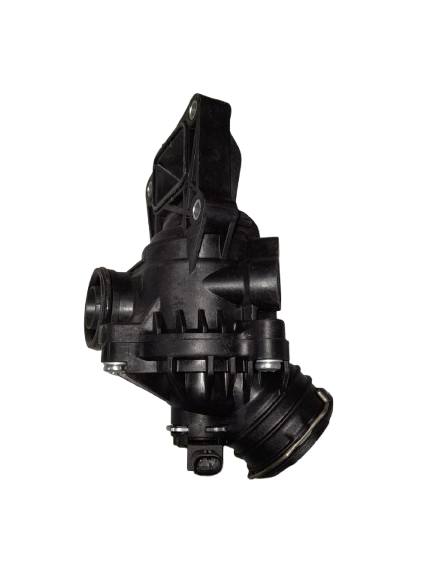

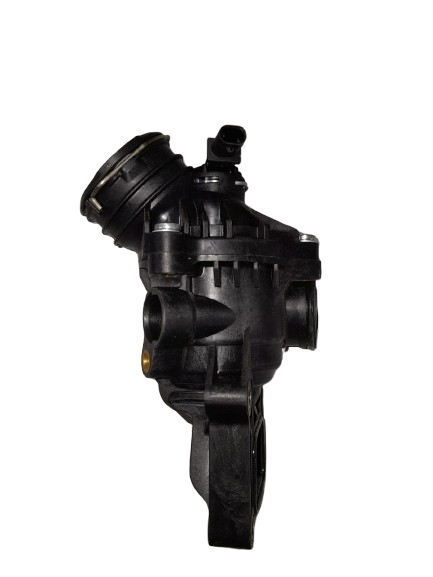

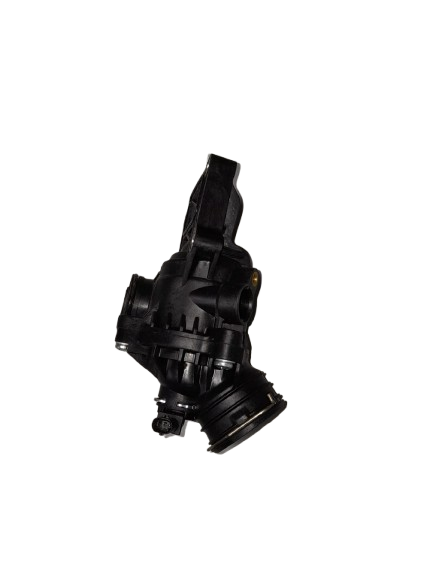

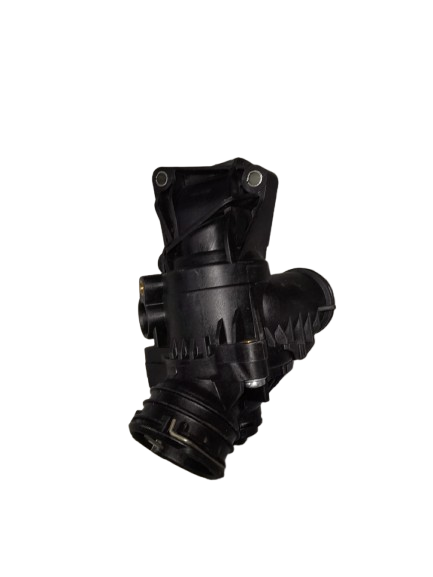

The thermostat housing in the Mercedes-Benz W205 series, specifically those equipped with the M274 2.0L inline-4 turbocharged engine, plays a critical role in maintaining the engine’s optimal operating temperature. Found in models like the C350 and ML350, this component is part of the engine’s cooling system and serves both mechanical and safety functions.
Functionality
The thermostat housing serves as a casing for the engine’s thermostat valve, which regulates the flow of coolant from the engine block to the radiator. The thermostat remains closed when the engine is cold, allowing it to warm up quickly. Once the engine reaches its optimal operating temperature (around 90°C or 194°F), the thermostat opens to allow coolant to circulate, preventing overheating.
In the M274 engine, the thermostat is electronically controlled, integrating with the engine management system to optimize efficiency and emissions. The housing itself often includes ports for temperature sensors, coolant outlets, and connections for bypass hoses.
Construction and Design
The thermostat housing for the W205 M274 engine is typically made from high-strength plastic or aluminum alloy, designed to withstand extreme temperature changes and coolant pressure. It’s precision-molded to fit the engine block perfectly and features integrated sealing surfaces to prevent leaks. The assembly usually includes:
- Thermostat (typically 87–90°C opening temperature)
- Housing with integrated coolant passages
- Gasket or rubber seal (O-ring)
- Sensor port (may include a temperature sensor)
Common Issues and Maintenance
Over time, thermostat housings can degrade due to heat cycling and pressure. Common issues include:
- Cracks in the plastic housing
- Coolant leaks at the gasket or O-ring
- Thermostat failure (stuck open or closed)
- Sensor malfunction
It’s recommended to inspect the thermostat housing during routine coolant service intervals or if the engine exhibits temperature irregularities. Replacement is often necessary around 80,000–120,000 km depending on driving conditions and coolant quality.
Compatibility and Replacement
When replacing the thermostat housing, ensure compatibility with your exact model year and engine variant. OEM and high-quality aftermarket options are available, often including the thermostat pre-installed within the housing. For the C350 and ML350 with the M274 engine, confirm part numbers via VIN or consult with a Mercedes-Benz parts dealer.
