Overview

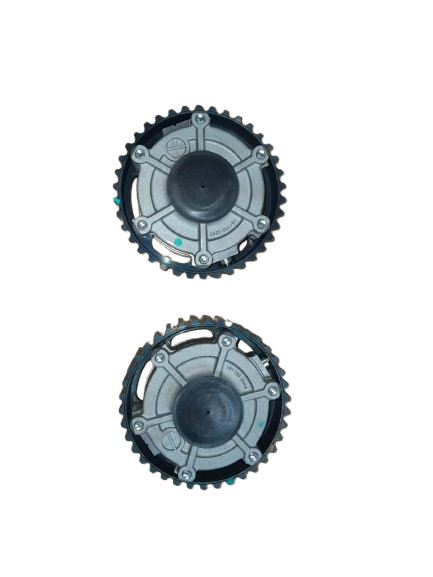

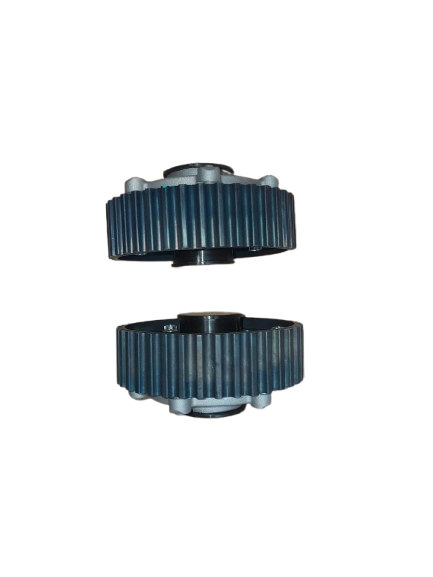

The Renault Mégane II 2.0 Cam Dephaser Pulley is a crucial component in the variable valve timing (VVT) system of the 2.0L petrol engine (commonly the F4R engine). This system is designed to improve engine performance, fuel efficiency, and emissions by adjusting the timing of the camshaft relative to the crankshaft. The dephaser pulley allows the camshaft to rotate slightly in relation to the timing belt or chain, depending on engine load and RPM, optimizing valve operation at different speeds.
Function and Importance
The cam dephaser pulley is fitted to the end of the camshaft and is controlled by oil pressure, regulated via a solenoid. When the engine control unit (ECU) detects a need to adjust valve timing (for example, during acceleration or cruising), it activates the oil control valve (OCV), which directs pressurized oil into the dephaser unit. The oil pressure shifts internal vanes, causing the camshaft to advance or retard.
This dynamic adjustment improves:
- Low-end torque
- High-RPM power
- Fuel economy
- Exhaust emissions
Without a properly functioning dephaser pulley, the engine can lose performance, become noisier, or show rough idling.
Common Issues and Symptoms of Failure
The Renault Mégane II 2.0 cam dephaser pulley is known to have a relatively limited lifespan and is a common failure point in this engine. Typical signs of failure include:
- Rattling noise at cold start (often described as a diesel-like sound)
- Poor acceleration
- Check engine light (CEL)
- Error codes such as P0010, P0011, or P0016
- Rough idling or stalling
These issues are typically due to internal wear or failure of the locking mechanism or vanes within the pulley.
Replacement and Maintenance
Replacing the dephaser pulley is a labor-intensive job, often requiring the timing belt to be removed. It is commonly recommended to replace the following components at the same time:
- Timing belt kit (belt + tensioners)
- Water pump
- Oil control valve (VVT solenoid)
- Camshaft oil seal
Renault recommends replacing the timing belt at around 60,000–75,000 miles (or every 5 years), and many technicians advise replacing the dephaser pulley during this service to avoid future problems.
Conclusion
The cam dephaser pulley in the Renault Mégane II 2.0 is a vital part of the engine’s variable valve timing system. While it offers performance and efficiency benefits, it is known to wear out over time, and symptoms like cold start rattles or engine warning lights shouldn’t be ignored. Replacing it during a timing belt service can prevent future engine issues and help maintain optimal engine performance.
