Overview

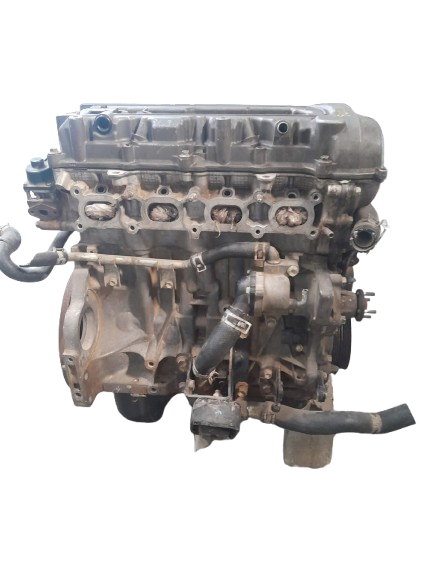

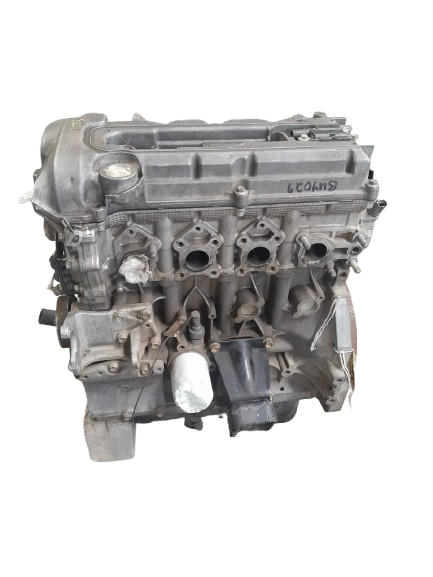

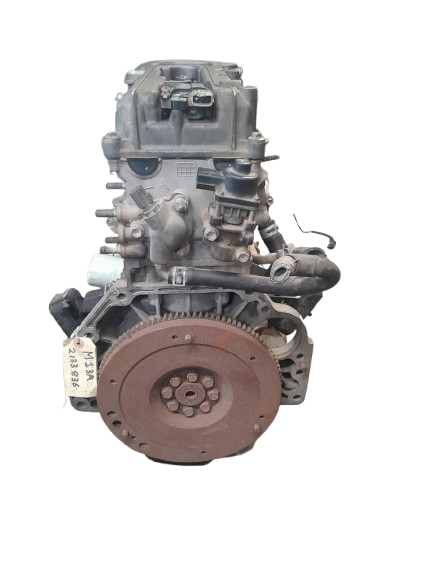

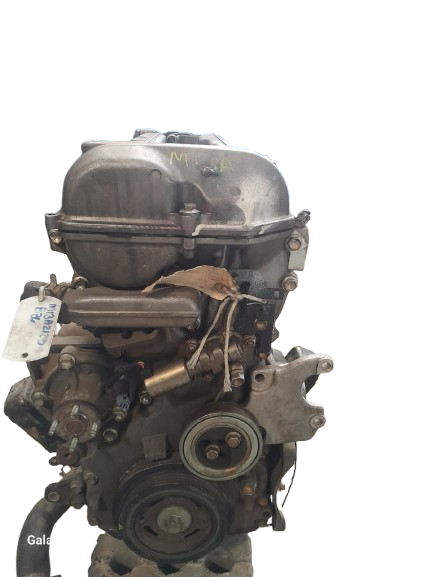

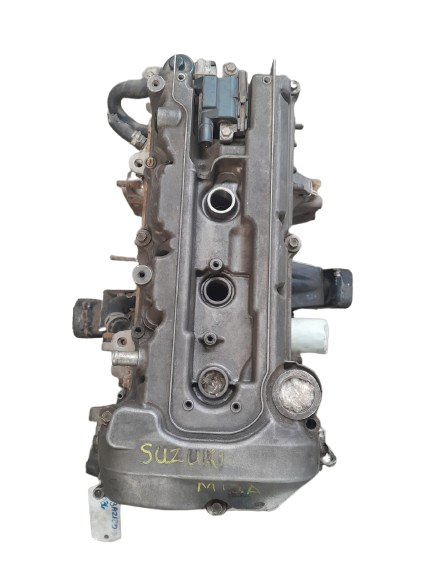

The Suzuki Jimny 1.3 M13A engine is a compact yet robust power unit that has been the heart of many Jimny models from the early 2000s through the mid-2010s. Designed by Suzuki as part of its M-series engine family, the M13A replaced the older G-series engines, bringing improved performance, better fuel economy, and lower emissions. It is a 1.3-liter inline-four, four-stroke, naturally aspirated petrol engine, known for its balance between durability and efficiency, making it an ideal match for the lightweight and capable off-road Jimny.
Technical Specifications
The M13A engine features a displacement of 1,328 cc, achieved through a bore of 78.0 mm and a stroke of 69.5 mm. It employs a DOHC (Double Overhead Camshaft) configuration with 16 valves, which allows for better airflow and combustion efficiency. The compression ratio typically ranges between 9.5:1 and 10.0:1, depending on the specific model and market.
Fuel delivery is managed through a multi-point fuel injection (MPFI) system, ensuring precise fuel metering for optimal performance and reduced emissions. The engine produces around 82–88 horsepower (61–66 kW) at 6,000 rpm and 110–116 Nm of torque at 4,100 rpm, depending on the tuning and emission standards.
Performance and Driving Characteristics
While not designed for high-speed performance, the M13A engine excels in low-end torque and reliability, two key traits for off-road and rugged driving. Its lightweight aluminum-alloy construction helps maintain a good power-to-weight ratio, improving the Jimny’s agility. Coupled with a five-speed manual or four-speed automatic transmission, the M13A delivers smooth, linear power suitable for both urban commuting and trail driving.
Reliability and Maintenance
The M13A is widely regarded as one of Suzuki’s most reliable small engines. It uses a timing chain instead of a belt, reducing maintenance requirements and increasing long-term dependability. Regular oil changes, clean filters, and proper cooling system upkeep can easily push this engine well beyond 200,000 kilometers without major issues. Its simplicity and mechanical accessibility also make it easy to service and repair, even in remote areas.
Conclusion
The Suzuki Jimny 1.3 M13A engine stands as a testament to Suzuki’s engineering philosophy — compact, efficient, and dependable. It may not deliver sports-car power, but its robust design, off-road capability, and low running costs make it a favorite among enthusiasts who value practicality and durability over sheer speed. For anyone seeking a reliable small 4×4 with a proven engine, the M13A remains a benchmark in its class.
