Introduction to the Toyota 3RZ Engine
The Toyota 3RZ-FE is a 2.7-liter, inline-4 engine from Toyota’s RZ engine family, widely recognized for its durability, torque-rich performance, and reliability under demanding conditions. Commonly found in vehicles like the Toyota Tacoma, Hilux, 4Runner, and Hiace, the 3RZ-FE is especially popular in off-road and utility applications. At the heart of this engine’s efficiency and power lies the cylinder head, which plays a critical role in airflow dynamics, combustion efficiency, and overall engine performance.
Design and Construction

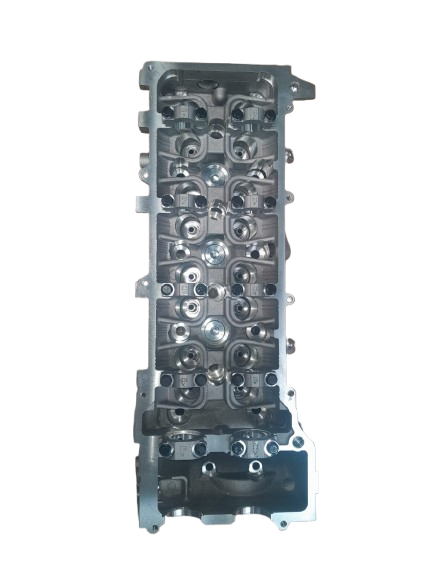

The 3RZ cylinder head is crafted from aluminum alloy, providing a lightweight yet strong structure. This material choice ensures excellent thermal conductivity, which helps dissipate heat efficiently — crucial for maintaining consistent combustion temperatures. The cylinder head features dual overhead camshafts (DOHC) and four valves per cylinder (16 valves total), allowing for improved breathing and increased power output.

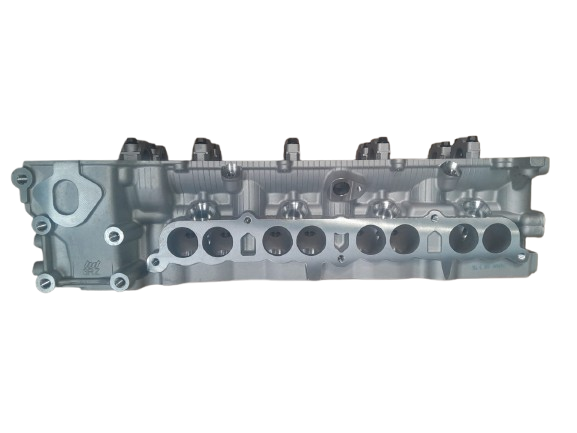

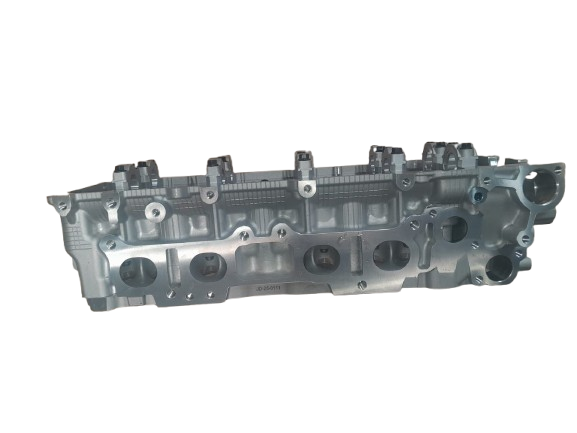

Precision-engineered intake and exhaust ports enhance air-fuel mixture flow and exhaust scavenging. The cylinder head also houses the camshaft bearings, valve seats, valve guides, and spark plug holes, all of which must be machined to tight tolerances to ensure peak performance and longevity.
Valve Train and Camshaft Configuration
The 3RZ-FE’s DOHC configuration provides independent control of intake and exhaust valves, which helps optimize valve timing and duration. The hydraulic lifters reduce the need for manual valve adjustments, providing quiet operation and reduced maintenance.
The camshafts are chain-driven and are mounted directly into the cylinder head, improving reliability over belt-driven alternatives. The timing chain setup, combined with the robust cylinder head design, makes this engine highly sought after for both stock and modified applications.
Common Issues and Rebuild Considerations
Over time, the cylinder head may develop issues such as cracks, warping, or worn valve guides, especially under extreme heat or in engines with poor maintenance. In such cases, a rebuilt or new cylinder head is often recommended. When rebuilding, technicians typically inspect for warpage, replace valve stem seals, regrind valves, and resurface the head to restore factory specifications.
Performance and Aftermarket Use
Because of its strong design, the 3RZ cylinder head is also popular among performance builders. It supports a wide range of aftermarket upgrades including porting and polishing, larger valves, and performance camshafts. These modifications are common in high-performance or turbocharged 3RZ builds, especially for motorsport or off-road use.
Conclusion
The Toyota 3RZ cylinder head is a robust and versatile component engineered for both longevity and performance. Whether in a factory setup or a high-performance application, its design supports reliability, efficiency, and tunability. For anyone maintaining or upgrading a 3RZ engine, the cylinder head remains a critical component that greatly influences overall engine behavior.
