Overview
The oil sump used in the Volkswagen Golf 6 GTI and Polo 6 GTI, both powered by the CAV-series 1.4 TSI twincharged engine, is a critical component of the engine’s lubrication system. Its primary role is to act as a reservoir for the engine oil, collecting and storing lubricating oil as it drains from the engine’s moving parts. From the sump, the oil is recirculated by the oil pump, ensuring continuous lubrication, cooling, and cleaning of engine components.
Design and Construction

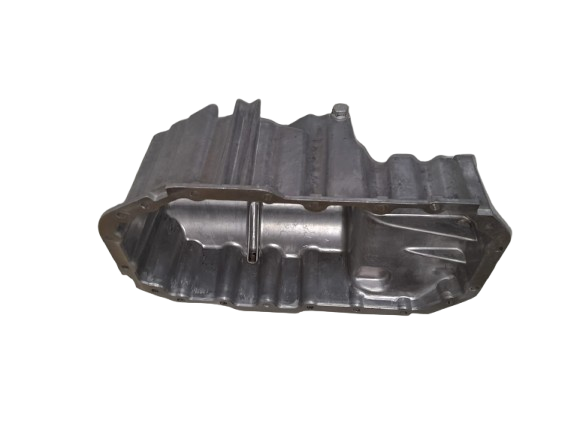

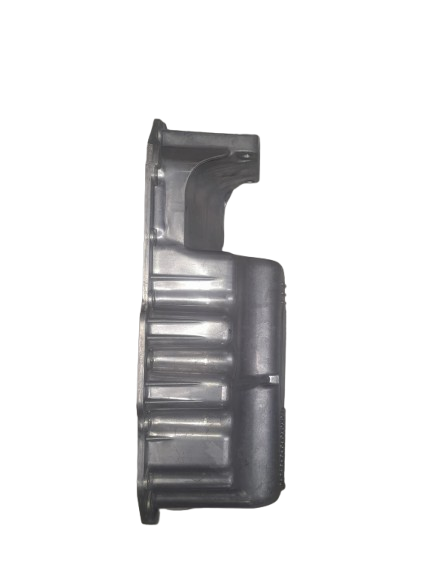

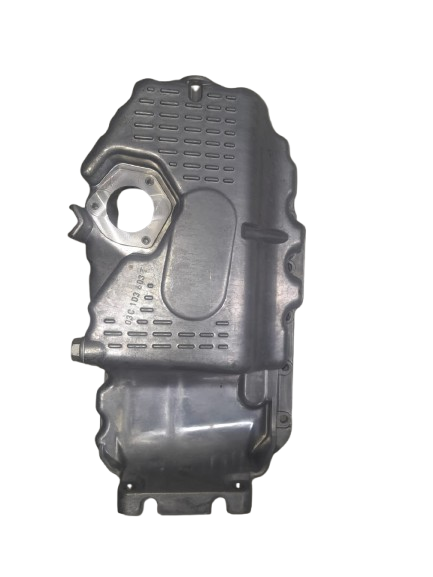

The CAV engine’s oil sump is typically made from lightweight cast aluminum, chosen for its balance of strength, heat dissipation, and corrosion resistance. The sump’s design features an integrated structural profile that not only serves as a reservoir but also contributes to the overall rigidity of the engine block assembly.

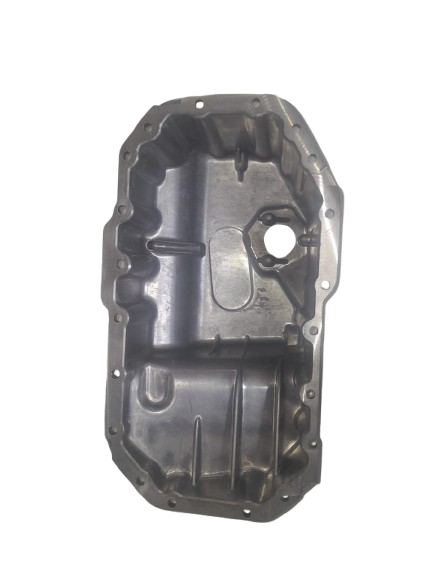

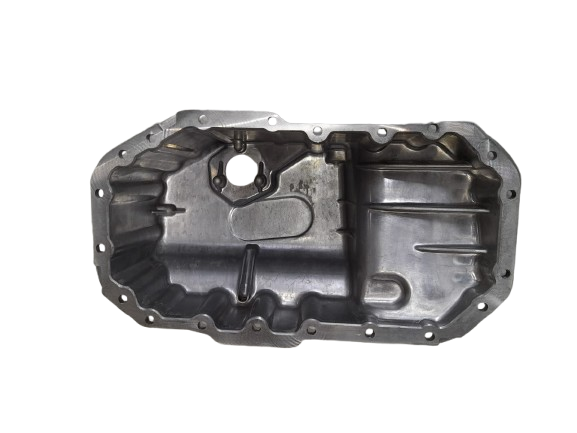

The upper section of the sump mates precisely with the engine’s crankcase, sealed using a high-temperature gasket or sealant to prevent oil leaks. Internally, the sump is designed with baffles and oil channels that minimize oil sloshing during high-speed cornering or rapid acceleration, which is especially important for the GTI models’ sporty driving characteristics.
Function and Operation
The oil sump serves several functions:
- Oil Reservoir: It stores between 3.5 to 4.0 liters of engine oil, depending on the exact model and configuration.
- Cooling: The aluminum structure aids in dissipating heat from the oil, helping maintain optimal operating temperatures.
- Oil Return and Filtration: After lubricating the moving engine parts, oil drains by gravity back into the sump, where debris can settle before recirculation.
- Oil Pickup Support: The sump houses the oil pickup tube, which connects to the oil pump, ensuring a continuous oil supply even under dynamic driving conditions.
Maintenance and Common Issues
Regular maintenance involves ensuring that the sump and its sealing surfaces remain clean and leak-free. Common issues include oil leaks from the sump gasket, damaged drain plugs, and cracks caused by road debris or impact. If a leak is suspected, the sump should be inspected for deformation or corrosion around the gasket surface.
Conclusion
In summary, the oil sump of the VW Golf 6 / Polo 6 GTI (CAV engine) is a precisely engineered component that performs more than just oil storage. Its design supports efficient oil circulation, cooling, and engine durability—key elements in maintaining the reliability and high performance that characterize Volkswagen’s GTI range.
